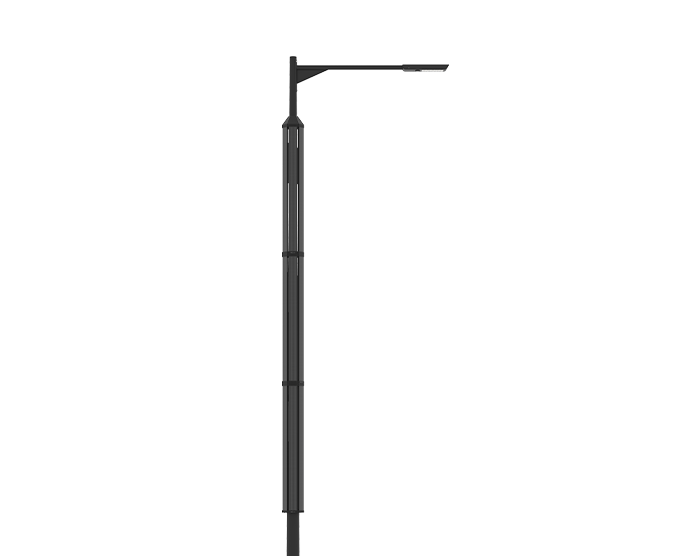

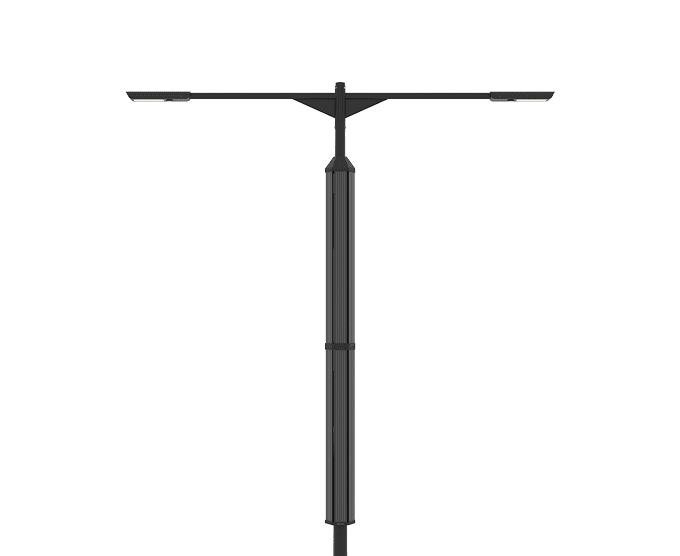

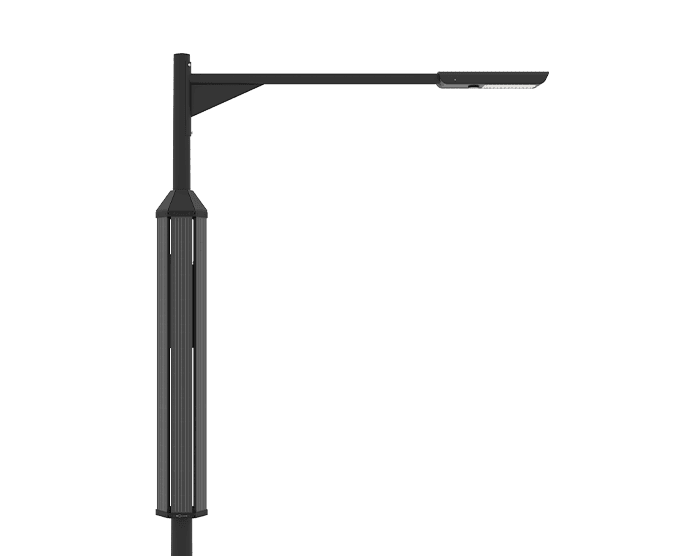

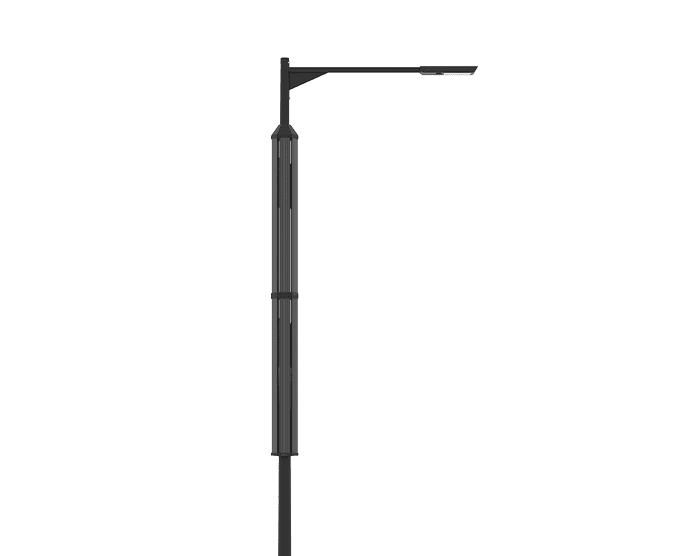

The Colarsun
Vertical solar panels for existing poles

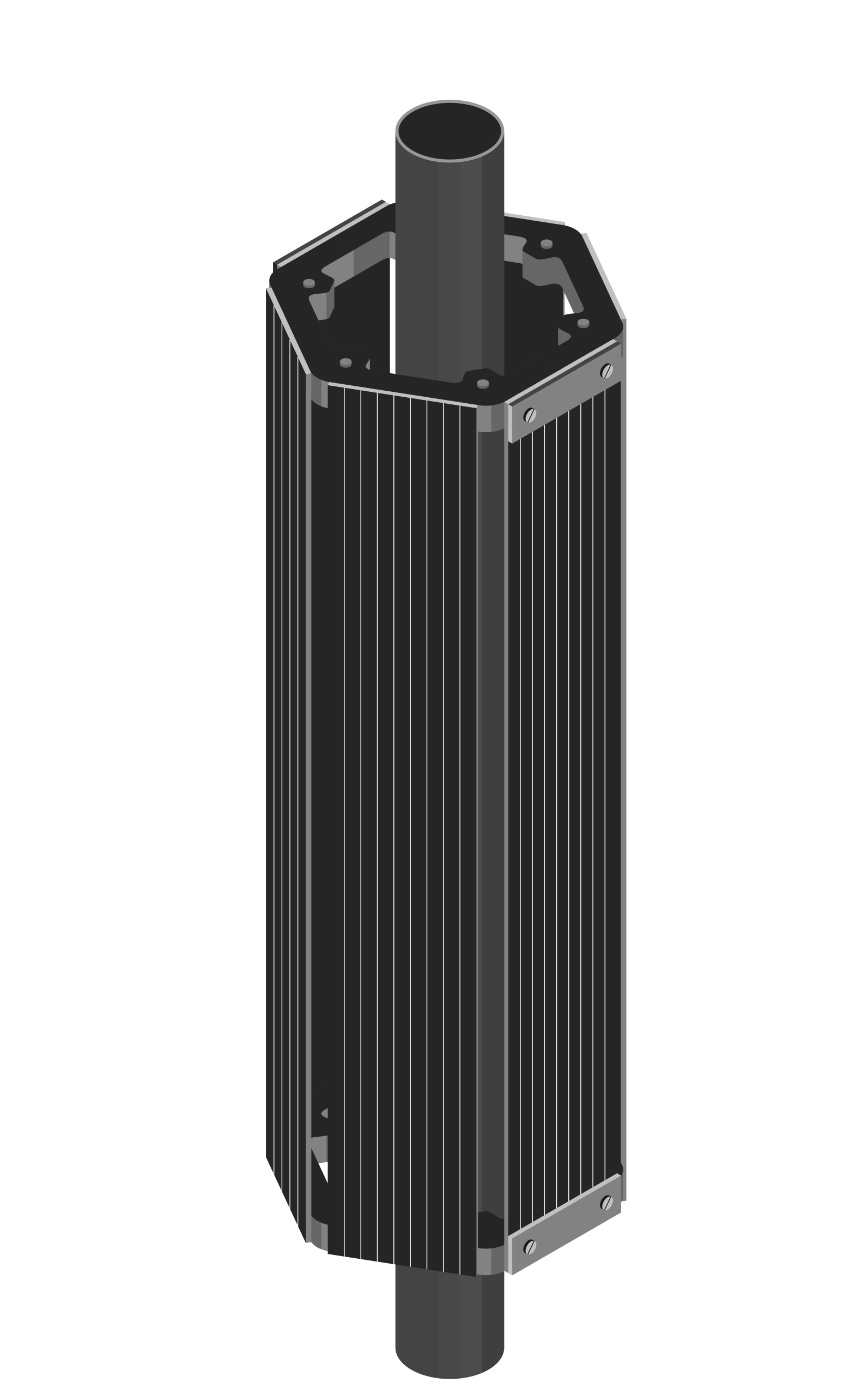

COLARSUN uses solar panels mounted vertically around the pole. It can convert compatible existing poles to solar lighting, while the panel arrangement helps reduce dust build-up and cleaning needs.
Luminaires suitable for
Where you can use these luminaires
Main Roads
Small Roads
Car Parks
Colarsun: 3 steps easy
installation

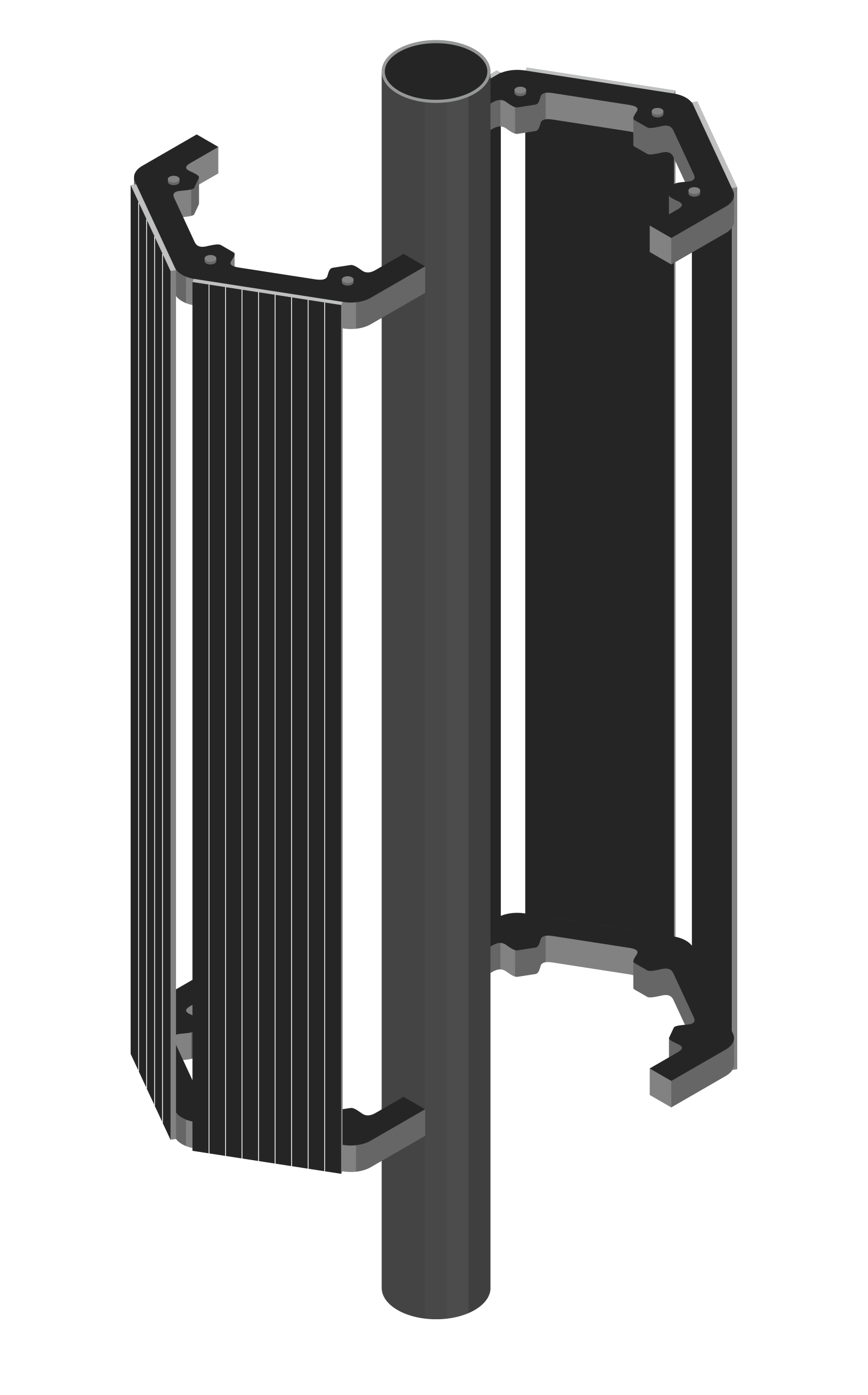

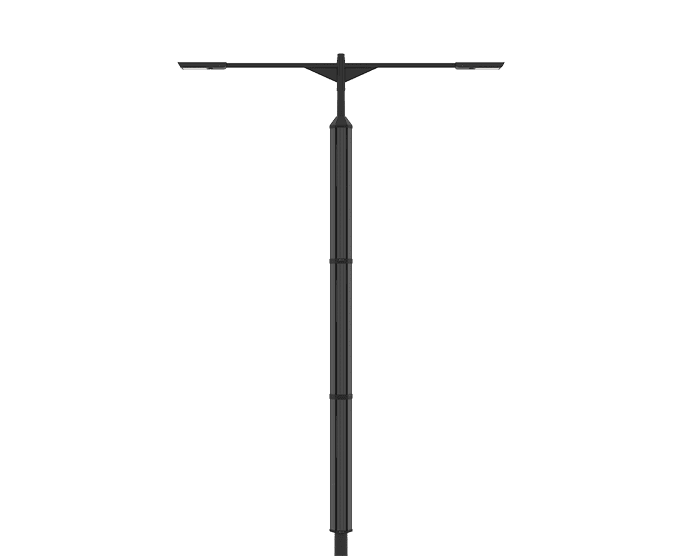

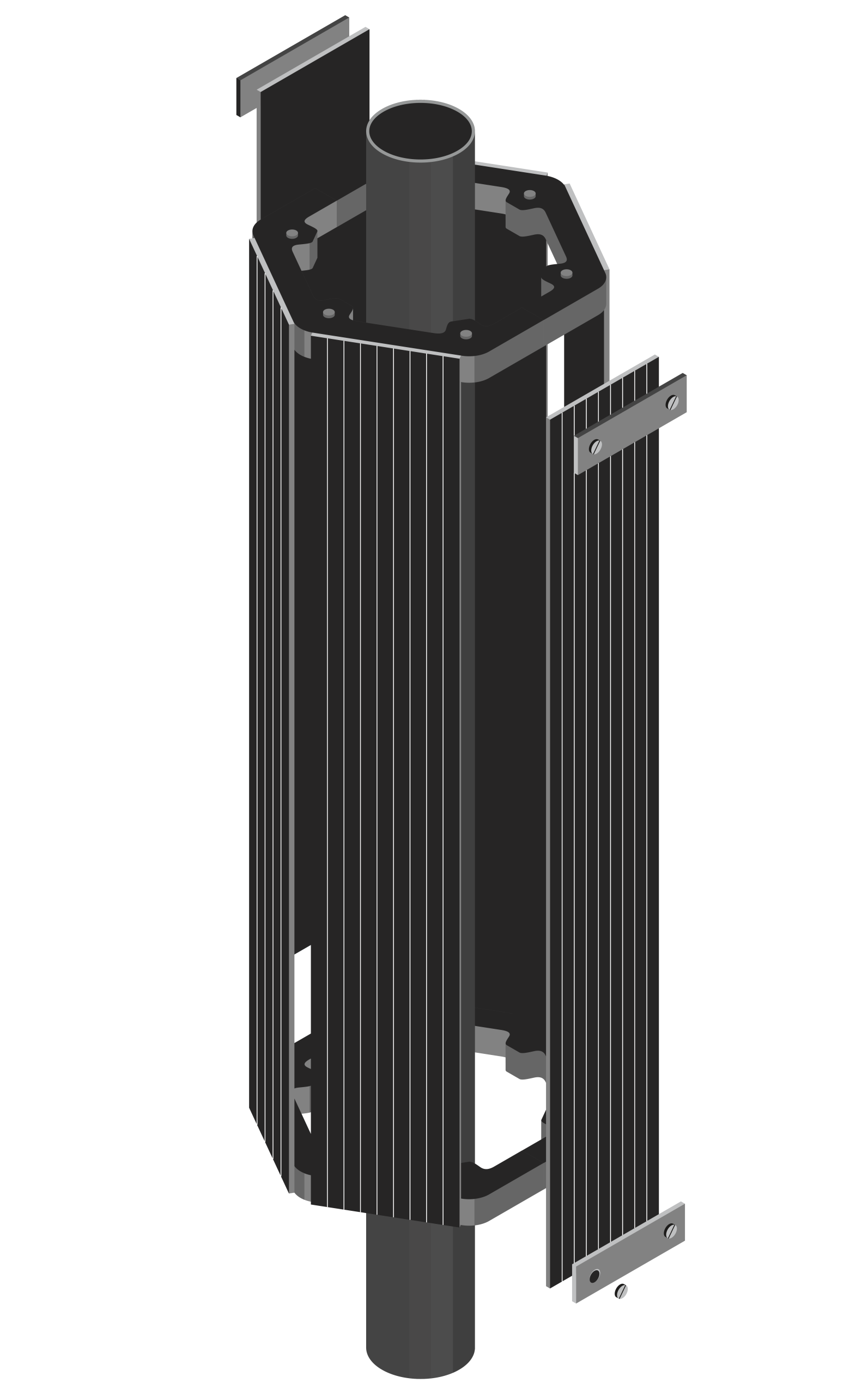

Fit the system to a compatible existing pole to reuse the infrastructure already on site.
Designed for outdoor public spaces where resistance to impact and weather matters.
One man Job installation
Verticality
Features and Advantages
Vertically mounted panels help limit dirt deposits and reduce cleaning needs.
This arrangement is useful on sites exposed to dust and sand.

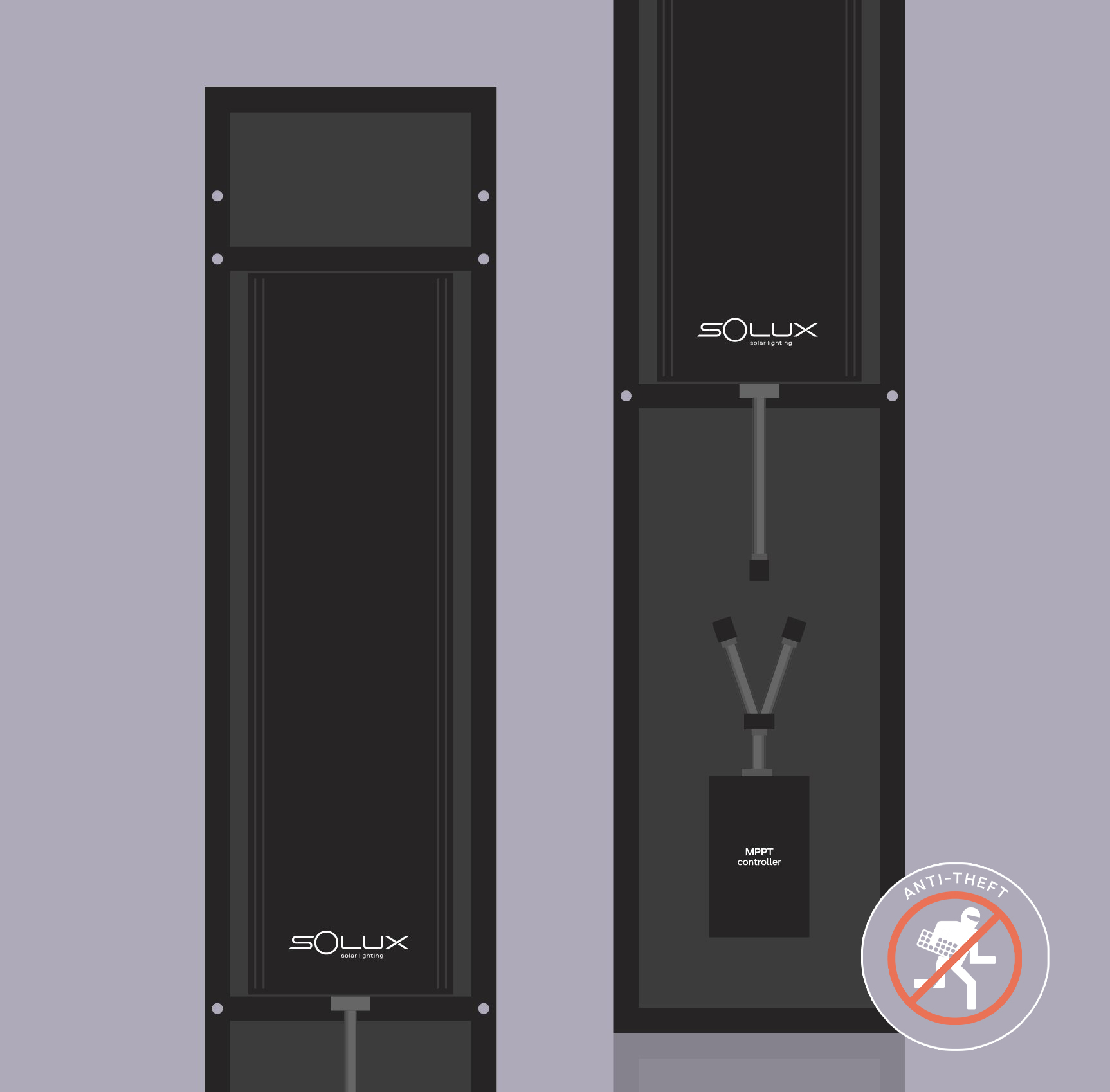

Anti-theft screws help secure the components against unauthorised removal.
Hassle free maintenance
Topcon vertical
Solar panels

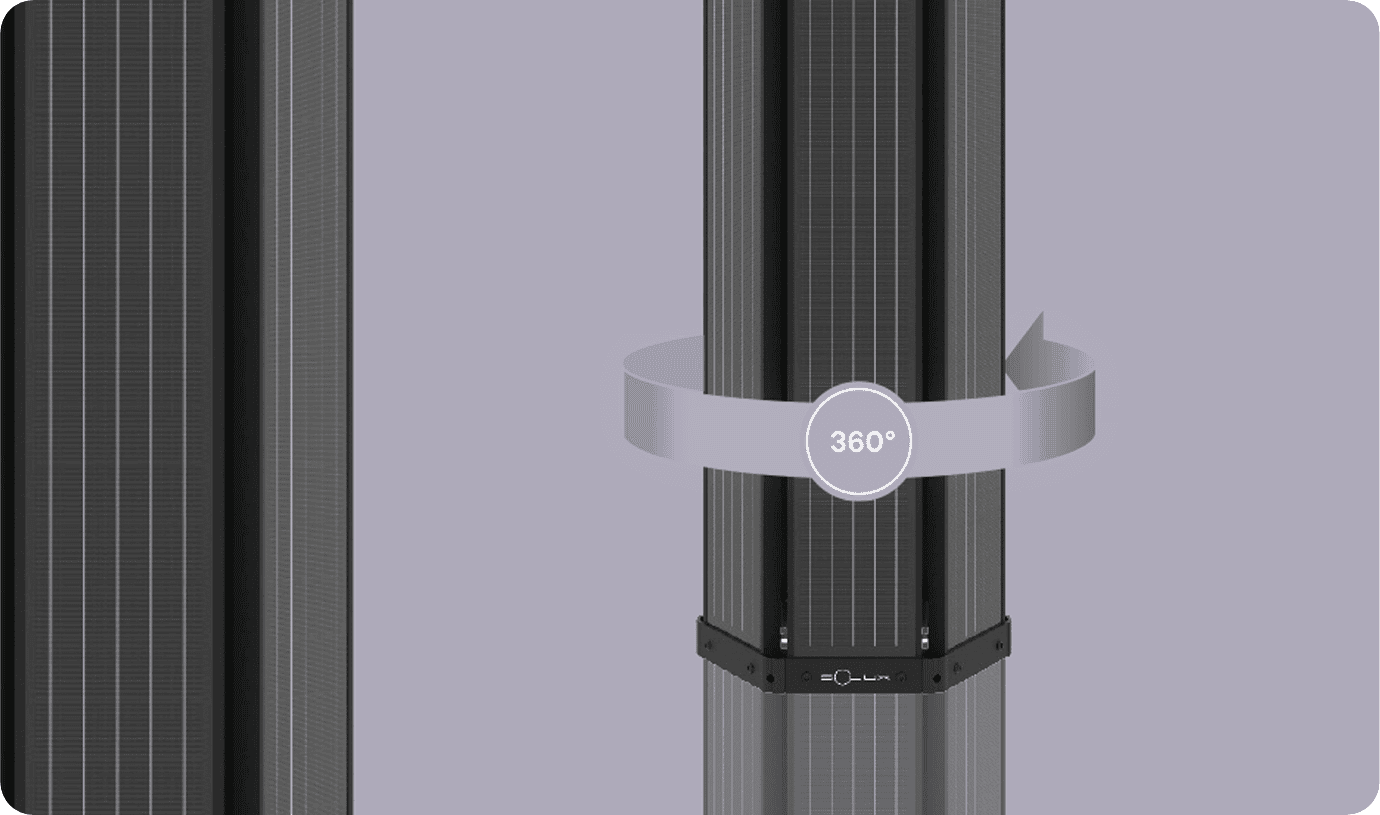

Panels around the pole collect sunlight from different directions through the day.
Battery design and service life

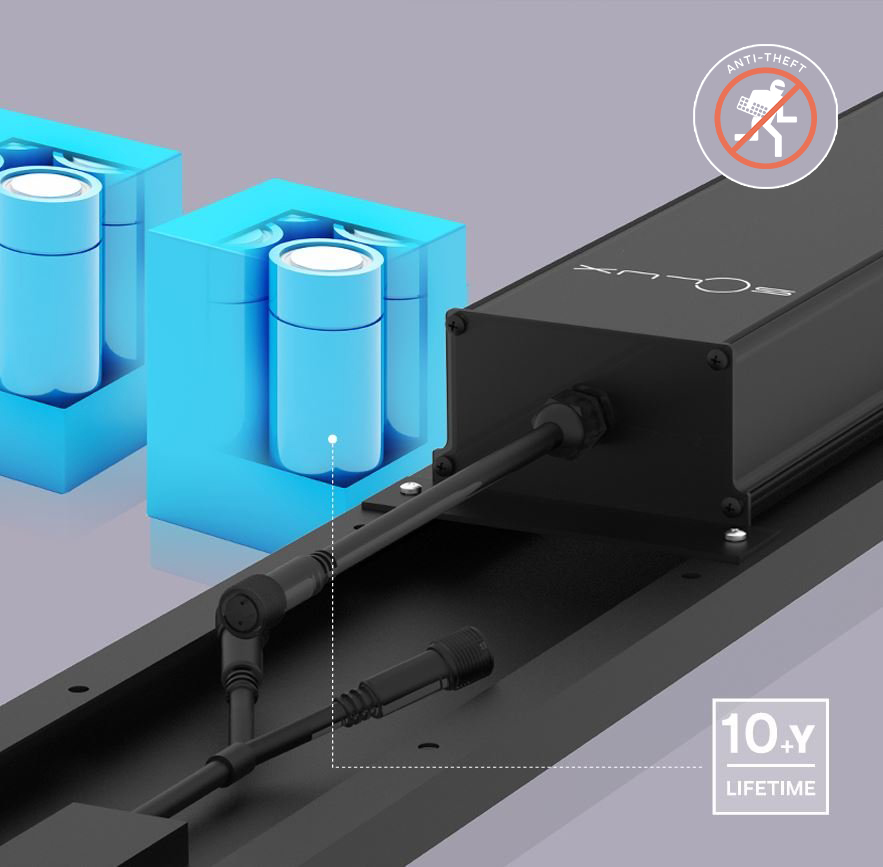

The LiFePO₄ battery is rated for over 5,000 cycles at 50% depth of discharge and a service life of over 10 years, depending on conditions. Its aluminium housing behind the panel is accessible for maintenance and allows natural airflow. A -40°C option is available.
LIFEP04 I Lithium powered
High performance LED

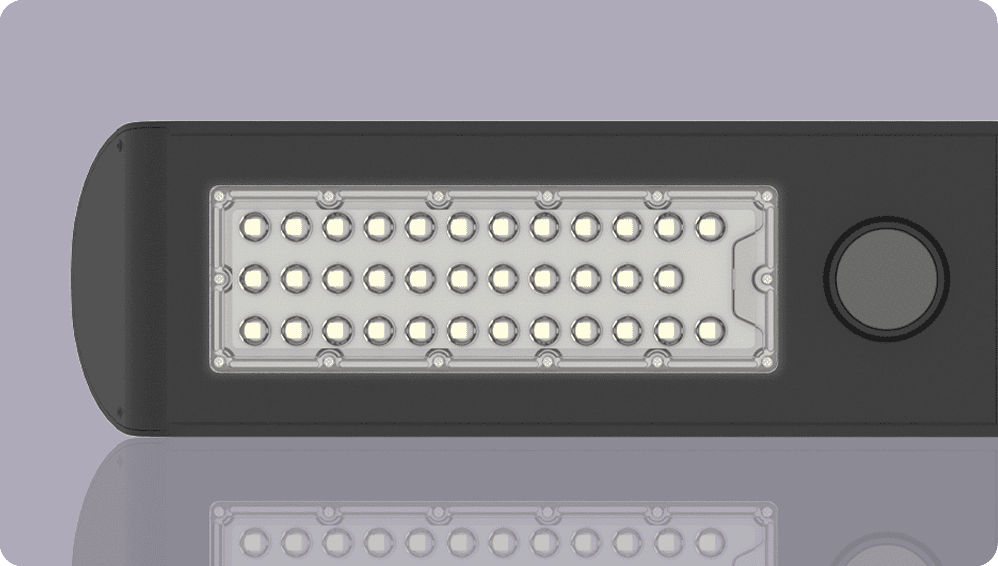

The IP66 luminaire uses low-copper extruded aluminium and PHILIPS LUXEON HE PLUS LEDs rated at 196 lm/W. A choice of polycarbonate lenses lets you match light distribution to the site.

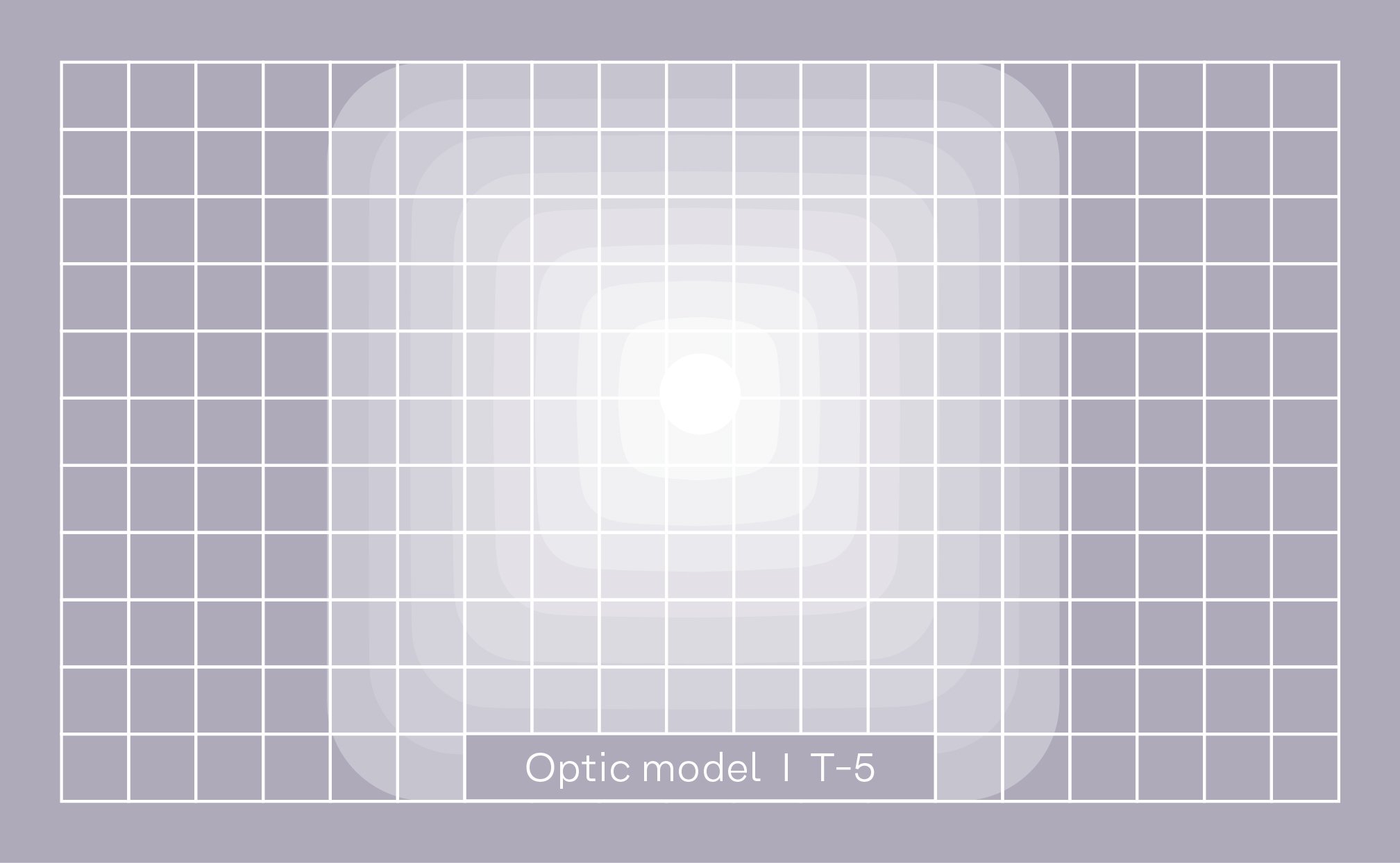

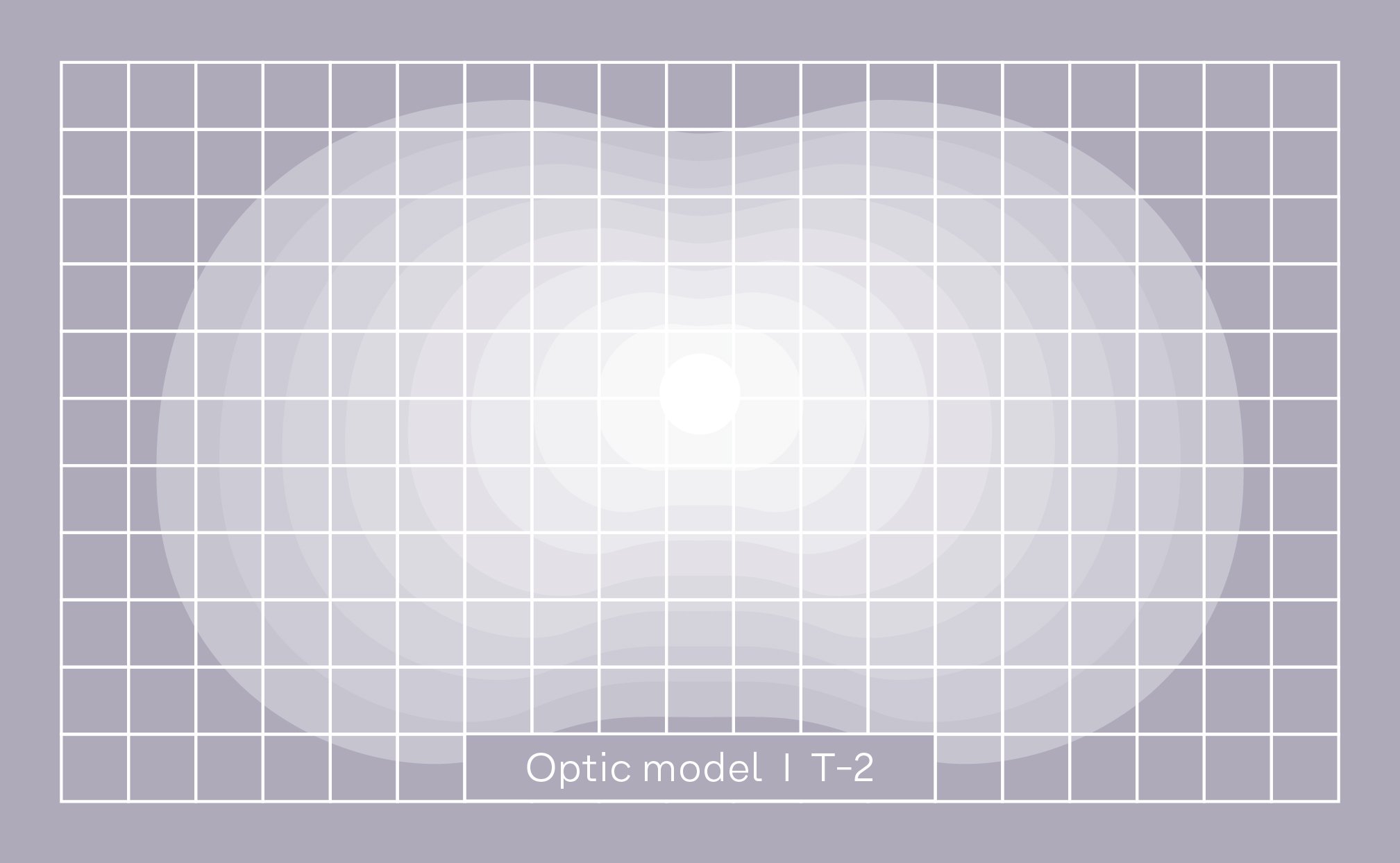

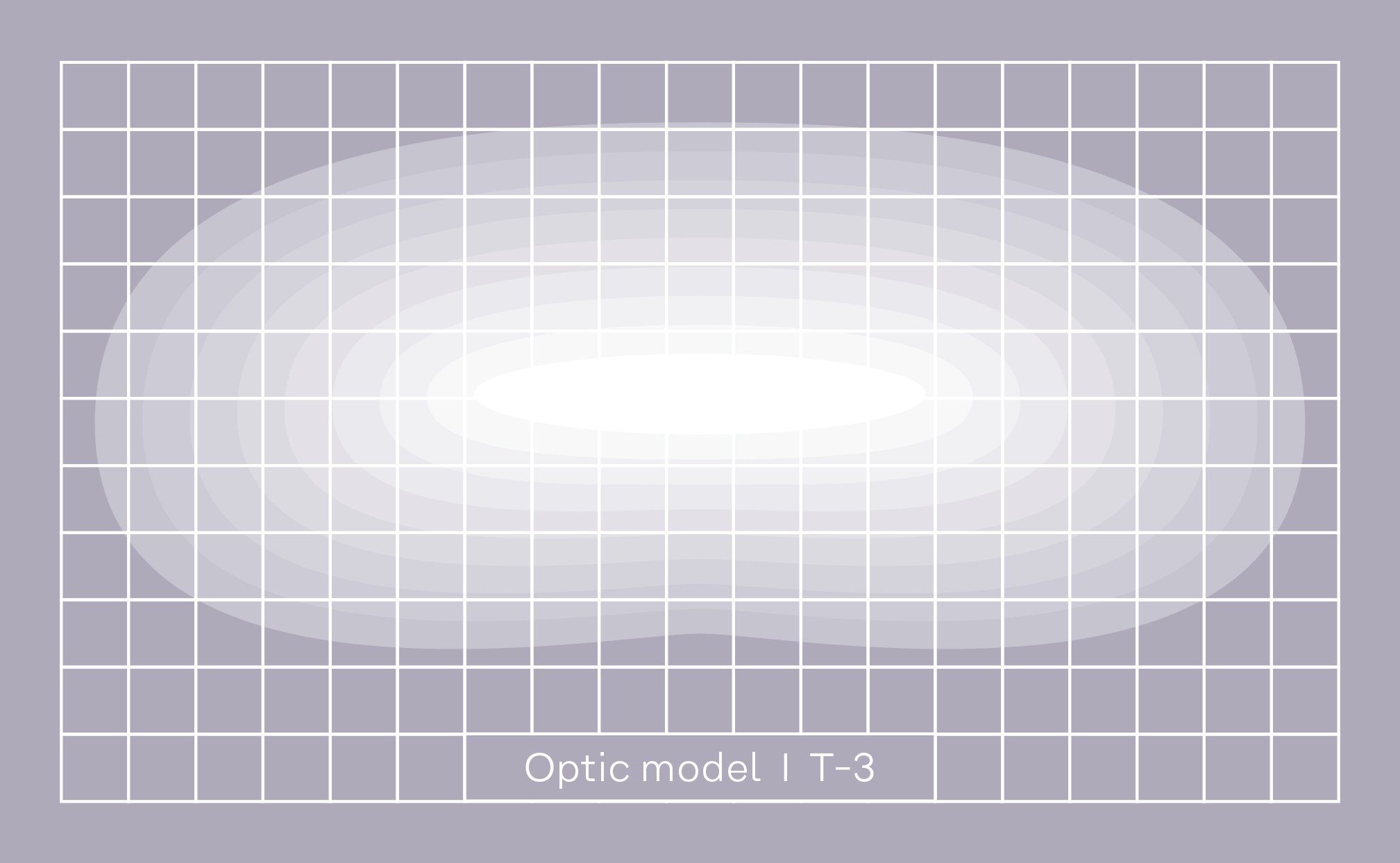

Light distribution
Choose the optics to suit your road or outdoor space. Our team can help compare the available distributions.
TII - TIII - TV
Contact us for more optics catalogue

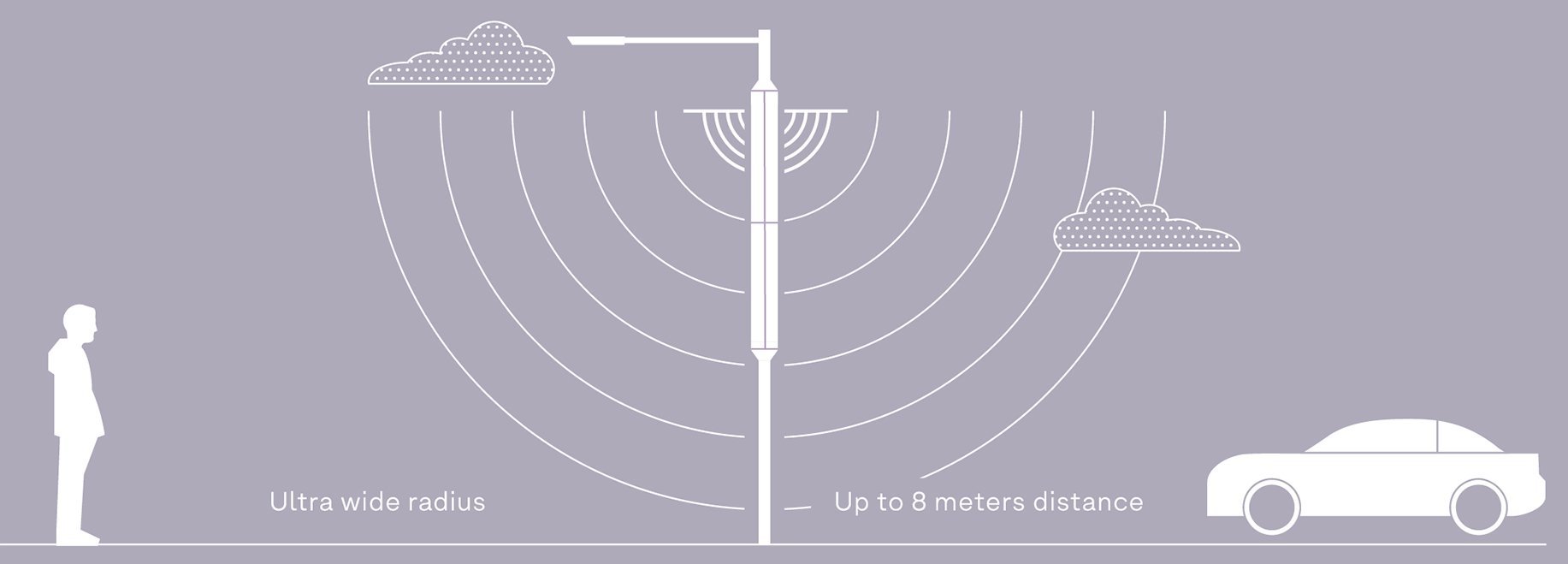

360° Microwave Motion sensor

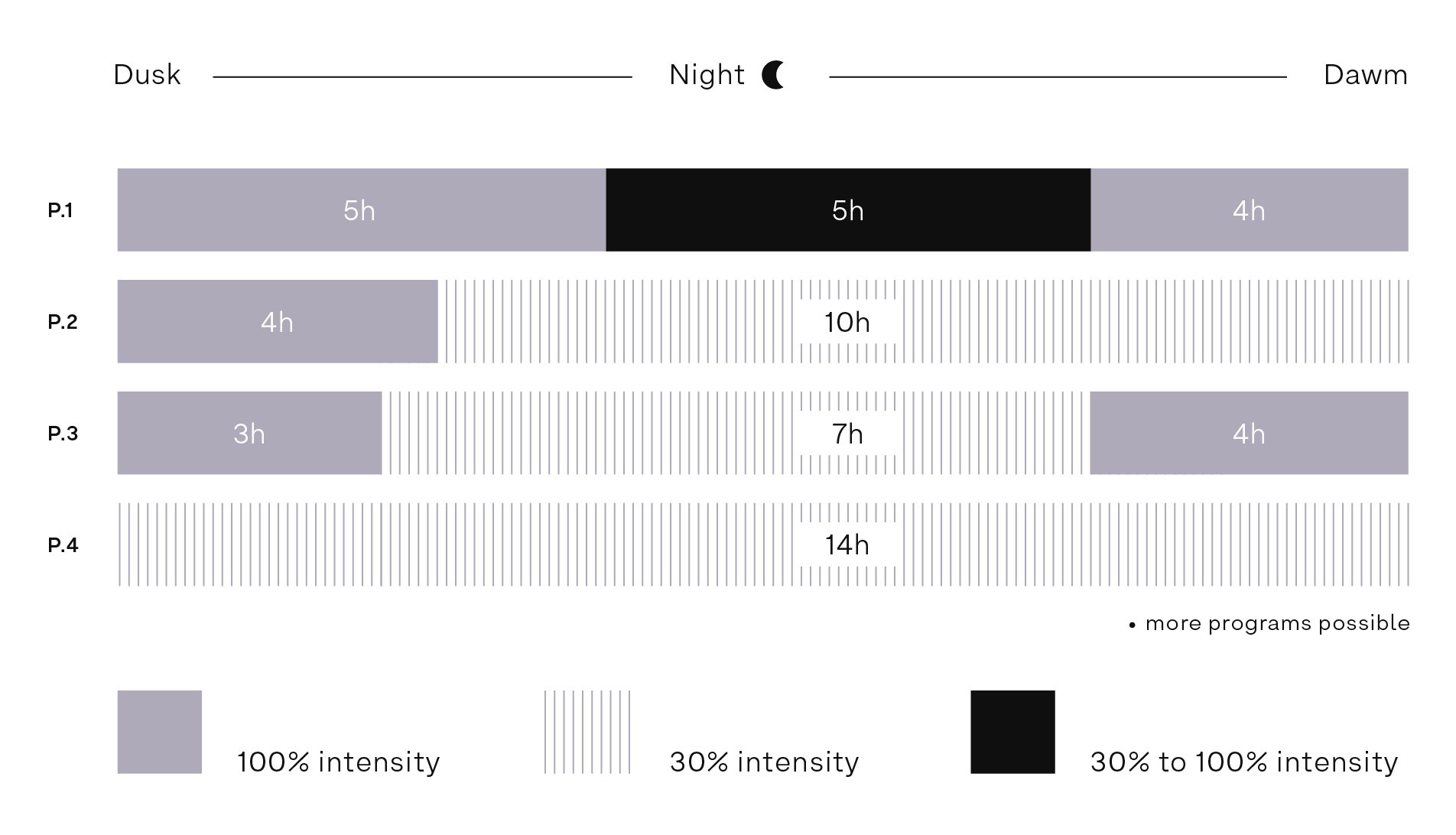

The microwave sensor detects passing pedestrians, cyclists and vehicles, then raises the light level. This provides more light when the space is in use and limits unnecessary lighting during quieter periods.
Component service life
We check component quality at each stage of manufacturing.
Lighting & LED
20 years
Battery
+ 10 years
Solar Panel
30 years
UV & Corrosion
15 years
